Глодала
Прави
straight_bit   straight_bit_type2
A B C D Шифра. Шифра.
2 8 6 32 - • D-12114
3 8 6 32 - • D-12120
3 12 6 32 - • D-12136
3.18 12.7 6 32 - • D-12142
3.97 12.7 6 32 - • D-12158
4 12 6 32 - • D-12164
4.76 15.9 6 32 - • D-12170
5 20 6 32 - • D-12186
6 20 6 32 - • D-12192
20 20 6 32 • 793143-2 • D-13742
3 15.9 6 32 - D-13409
6 16 6 32 - D-13415
6 25.4 6 32 - D-13502
6 16 6 32 - D-13627
6 16 6 32 - D-08816
6 18 6 30 - D-13910
6 19 6 32 - D-13633
6 25.4 6 32 - D-13649
6.35 25.4 6 32 - • D-12201
8 18 6 32.5 - D-13926
8 20 6 32 - D-13655
8 25 6 32 - D-13661
8 25 6 32 - D-13518
10 25 6 32 - D-13677
12 25.4 6 32 - D-13683
6 18 6.35 32 793074-5 -
8 18 6.35 32 793103-4 -
20 15 6.35 32 793160-2 -
2 6 8 32 - D-12217
8 25 8 32 793126-2 D-13948
8 25 8 32 - D-13699
12 38.1 8 32 - D-13524
12 50.8 8 32 - D-13530
12 63.5 8 32 - D-13546
13 20 8 32 - D-13552
13 25 8 32 - D-13568
14 20 8 32 - D-13574
14 31.8 8 32 - D-13708
10 25 12 38 - D-13714
10 25 12 26 - D-13895
10 31.8 12 38 - D-13421
12 20 12 38 - D-13580
12 25.4 12 38 - D-13437
12 30 12 25 - D-13904
12 31.8 12 38 - D-13720
12 38.1 12 38 - D-13596
12 38.1 12 38 - D-13443
12 50.8 12 38 - D-13459
12 63.5 12 38 - D-13465
13 20 12 38 - D-13471
13 25 12 38 - D-13487
14 20 12 38 - D-13493
14 31.8 12 38 - D-13605
16 31.8 12 38 - D-13611
25.4 25.4 12 38 - D-13736
10 25 12.7 35 793102-6 -
12 30 12.7 31 - D-07901


Drill Point Flush Trimming Bit


D A1 L1 L2 L3 Шифра.
6 6 60 18 28 793078-7
6.35 6 60 18 28 793108-4
8 8 60 20 35 793063-0
9.5 8 60 20 35 793107-6
12.7 12 60 20 35 793106-8


Flush_trim_bit_2drill_point_flush_trimming_

A B C D Шифра.
6.35 19 6 32 • D-12223
9.5 25.4 6 32 • D-12239
10 20 6 30 • D-13932
12.7 25.4 6 32 • D-12245
9.5 12.7 8 32 • D-12251
12.7 30.2 8 32 • D-12267
12 25.4 12 38 • D-10584
12.7 50.8 12 38 • D-10506
12 19 8 32 • D-12304
12 25 8 32 • D-12310
28.58 30.16 12 38 • D-12273
28.58 38.1 12 38 • D-12289
32 38.1 12 38 • D-12295


bevel

A B C D Angle Шифра.
6.35 19 6 32 70 • D-12332
9.5 25.4 6 32 70 • D-12326
10 20 6 30 220 • D-10615


panel_pilot_bit

A B C D Шифра.
6 6.35 6 38 D-12348


Drill Point Flush Trimming Bit


D A1 L1 L2 L3 L4 Шифра.
6 6 70 40 12 14 793091-5
6.35 6 70 40 12 14 793111-5
8 8 80 55 20 25 793110-7
9.5 12 85 60 24 22.5 793127-0


V_Groove-Bit

A B C D Angle Шифра. Шифра.
9.5 9.5 6 32 900 - D-12360
12.7 11.11 6 32 900 - D-12376
12.7 12.7 6 30 900 - D-12398
19.05 15.9 6 32 900 793193-7 D-12407
20 15 6.35 32 900 793194-5 -
9.5 9.5 8 32 900 - D-12382
9.5 9.5 12 38 900 - D-12354


U_Groove-Bit

A B C D R1 Шифра. Шифра.
6 6 50 18 3 - D-09329
6.35 6 50 18 3 793329-8 -
12.7 12 55 20 6 793100-0 -


core_box

A B C D R Шифра.
6 6 6 32 3 • D-12441
12.7 12.7 6 38 - • D-12550
12 9.5 8 32 6 • D-10805
20 16 8 32 10 • D-12457
12.7 9.5 12 38 6.35 • D-12429
15.9 12.7 12 38 7.94 • D-12435


ball_groove_bit

A B C D R Шифра.
15.9 15.9 6 32 11.11 D-12463

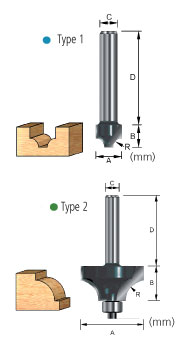

beading_bit

A B C D R Шифра. Шифра.
12.7 11.11 6 32 4.76 - • D-12479
19 9.5 6 32 3.18 - • D-12706
20.7 9.5 6 32 4 • 793153-9 • D-12712
22.2 9.5 6 32 4.76 - • D-12728
24.7 12.7 6 32 6 - • D-12734
25.4 11.11 6 32 6.35 - • D-12740
28.6 12.7 6 32 8 - • D-12756
31.8 15.9 6 32 9.52 - • D-12762
20 10 6.35 40 4 • 793170-9 -
26 12 6.35 42 7 • 793171-7 -
32.7 16 8 32 10 - • D-13823
38.1 19 8 32 12.7 - • D-11368
30 20 12 35 4 • 793071-1 -
32.7 16 12 38 10 - • D-12681
36.7 19 12 38 12 - • D-13839
50.8 25.4 12 38 19.05 - • D-11374
88.9 44.45 12 45 38.1 - • D-12697
30 20 12.7 35 4 • 793113-1 -


cove_beading_bit

A B C D R Шифра.
20 8 6 39 4R 793146-6
25 13 6 35 8R 793147-4
20 8 6.35 39 4RE 793163-6
26 13 6.35 35 8RE 793164-4


BALL_BEARING

D A1 A2 L1 L2 L3 R1 Шифра.
6 20 18 40 10 5.5 30 793157-1
6 26 22 42 12 5 50 793158-9
6.35 26 22 42 12 5 50 793175-9
6.35 20 18 40 10 5.5 30 793174-1


DOVETAIL_BIT

D A1 L1 L2 B0 Шифра.
6.35 12 50 9 300 793372-7
6.35 14.5 55 10 350 793373-5
6.35 14.5 55 14.5 230 793374-3
8 12 50 9 300 793066-4
8 14.5 55 10 350 793095-7
8 14.5 55 14.5 230 793094-9
9.5 14.5 55 10 350 793124-6
9.5 14.5 55 14.5 230 793125-4
9.5 12 50 9 300 793123-8


ogee_bit

A B C D E R Шифра.
12.7 9.5 6 32 4.76 1.980 D-12485
19.05 11.11 6 32 6.35 3.180 D-12491


classic_panel_bit

A B C D R Шифра.
12.7 9.5 6 32 2.380 D-12522
19.05 12.7 6 32 3.970 D-12538
12.7 9.5 8 32 2.380 D-11069
19.05 12.7 8 32 3.970 D-11075
12.7 9.5 12 38 2.380 D-12500
19.05 12.7 12 38 3.970 D-12516
38.1 22.,2 12 38 8.730 D-11097


classic_BEADING_BIT

A B C D R Шифра.
19.05 11.11 12 38 3.180 D-12544


PIERCE_ROUND_OVER_BIT

A B C D R Шифра.
38.1 22.2 8 32 12.70 D-13889


cove_bead_bit

A B C D R Шифра.
22 9.9 8 40 3.180 D-11156
35 14.28 12 50 5.560 D-12566


classical_plunge_bit

A B C D R Шифра.
22 12.7 8 40 R1=3.970, R2=5.550 D-11178
35 14.28 12 50 R1=6.350, R2=10.320 D-12572


classic_mold_bit

A B C D R Шифра.
38.1 15.9 8 32 R1=3.180, R2=9/50 D-11704
38.1 15.9 12 38 R1=3.180, R2=9/50 D-13029


rounding_over_bit

A B C D R Шифра.
15.9 9.5 6 32 1.590 D-12603
19 9.5 6 32 3.180 D-12619
24.7 12.7 6 32 60 D-12625
25.4 11.11 6 32 6.350 D-12631
28.6 12.7 6 32 80 D-12647
31.8 15.9 6 32 9.520 D-12653
38.1 19 6 32 12.70 D-12669
20 10 6.35 35 40 793105-0
25 13 6.35 35 80 793159-7
20.7 9.5 8 32 40 D-11209
24.7 12.7 8 32 60 D-12675
31.8 15.9 8 32 9.520 D-11243
32.7 16 12 38 100 D-12588
36.7 19 12 38 120 D-12594
38.1 19 12 38 12.70 D-13786
20 10 12 40 60 793070-3
20 10 12.7 40 60 793104-2


ball_bearing_corner_roundin

D A1 A2 L1 L2 L3 R Шифра.
6 15 8 37 7 3.5 30 793151-3
6 21 8 40 10 3.5 60 D-09444
6.35 15 8 37 7 3.5 30 793168-6
6.35 21 8 40 10 3.5 60 793169-4


double_ball_bearing_round_c

D A1 A2 L1 L2 L3 R Шифра.
12 35 27 70 11 3.5 30 793073-7
12 35 27 70 11 3.5 60 793093-1


double_round_bit

A B C D R Шифра.
31.8 14.28 6 32 4.760 D-12784
31.8 14.28 8 32 4.760 D-11411
38.1 17.46 12 38 6.350 D-12778


cove_bit

A B C D R Шифра.
15.9 9.5 6 32 3.180 D-12790
19 9.5 6 32 4.760 D-12809
22.2 9.5 6 32 6.350 D-12815
28.6 12.7 8 32 9.520 D-11477




D A1 A2 L1 L2 L3 R Шифра.
12 30 20 55 12 20 40 793072-9


chamfer_bit

A C D R Шифра.
23 6 35 300 793144-0
20 6 37 450 793080-0
20 6 35 600 793145-8
23 6.35 35 300 793161-0
20 6.35 37 450 793075-3
20 6.35 35 600 793162-8
26 8 32 450 D-12837
57.15 12 38 450 D-12821


ball_bearing_chamfering_bit

D A1 A2 L1 L2 B Шифра.
6 20 8 41 11 600 793150-5
6 26 8 42 12 450 793149-0
6.35 20 8 41 11 600 793167-8
6.35 26 8 42 12 450 793166-0


slotting_bit

A B C D Шифра.
31.8 3.18 6 32 D-12843
31.8 4.76 6 32 D-12859
31.8 6.35 6 32 D-12865
31.8 7.94 6 32 D-12871
31.8 9.5 6 32 D-12887


roman_ogee_bit

A B C D R Шифра.
27 11.9 6 32 3.970 D-12902
34.9 16.6 6 32 6.350 D-12918
27 11.9 8 32 3.970 D-11542
34.9 16.6 8 32 6.350 D-11558
43 25 12 38 80 D-12893


ogee_bit_1

A B C D R Шифра.
31.8 12.7 8 32 4.760 D-11564
38.1 17.46 8 32 6.350 D-11570
38.1 17.46 12 32 6.350 D-12924


ogee_with_fillet_bit

A B C D R Шифра.
34.9 14.28 8 32 4.760 D-11586
41.28 17.46 8 32 6.350 D-11592


classic_ogee_bit

A B C D R Шифра.
25.4 12.7 6 32 3.180 D-12946
31.8 14.28 8 32 4.760 D-11617
38.1 17.46 12 38 6.350 D-12930


classic_roman_ogee_bit

A B C D R Шифра. Шифра.
20 10 6 30 4.50 793155-5 -
25.4 12.7 6 32 3.180 793156-3 D-12968
31.8 15.9 6 32 4.760 - D-12974
25.4 12.7 8 32 3.180 - D-11639
31.8 15.9 8 32 4.760 - D-11645
38.1 19 12 38 6.350 - D-12952


cavetto_bit

A B C D R Шифра.
25.4 12.7 6 32 4.760 D-12996
28.6 14.28 6 32 6.350 D-13007
28.6 14.28 8 32 6.350 D-11673
31.8 15.9 8 32 7.940 D-11689
38.1 15.9 12 38 7.940 D-12980


wavy_mold_bit

A B C D R Шифра.
31.8 14.28 8 32 3.180 D-11695
31.8 14.28 12 38 3.180 D-13013


decor_sunk_bead_bit

Radius Sunk Bead Bit*
A B C D R Шифра.
38.1 6.35 6 32 3.180 *D-13041
38.1 6.35 6 32 3.180 D-13057
38.1 6.35 12 38 3.180 D-13035


beed_cove_bit

A B C D R Шифра.
31.8 36.51 8 38 9.520 D-13063


multi_reed_bit

A B C D R Шифра.
22.2 25.4 6 32 3.180 D-13079
22.2 25.4 8 32 3.180 D-13085


three_bead_bit

A B C D R Шифра.
22.2 25.4 6 32 3.180 D-13091
22.2 25.4 8 32 3.180 D-13100


cove_and_bead_bit

A B C D R Шифра.
28.6 22.2 12 38 6.350 D-13116
41.28 31.8 12 38 12.70 D-13122


moulding_bit

A B C D R Шифра.
17.46 25.4 6 32 3.180 D-13194
19 25.4 6 32 1.980 D-13203
19 25.4 6 32 1.980 D-13219
17.46 25.4 8 32 3.180 D-13225
19 25.4 8 32 1.980 D-13231
23.8 34.9 12 38 3.970 D-13138
23.8 34.9 12 38 3.970 D-13144
26.99 41.28 12 38 3.180 D-11748
25.4 34.9 12 38 3.970 D-13150
25.4 42.8 12 38 3.180 D-13166
34.9 41.28 12 38 3.180 D-13172
38.1 38.1 12 38 3.180 D-13188


multi_profile_bit_decorativ

A B C D R Шифра.
25.4 22.2 12 38 3.970 D-13247
44.45 28.6 12 38 3.180 D-11754


classical_multi_profile_bit

A B C D R Шифра.
31.8 25.4 8 32 3.970 D-11760
57.15 47.6 12 45 3.180 D-11776


multiple_profile_bit

A B C D R Шифра.
31.8 23.8 12 38 3.180 D-13253
34.9 19 12 38 2.380 D-13269
50.8 30.1 12 38 4.760 D-13275


slotting_cutter

D A1 L1 L2 Шифра.
12 30 55 3 793067-2
12.7 30 55 3 793122-0
12.7 30 55 6 793121-2


variable_slot_cutter_set

A B C D Шифра.
47.6 18.2 12 38 D-13281



thumb_mold_bit
A B C D Шифра.
63.5 19 12 45 • D-11782
63.5 19 12 38 • D-13297


classic_profile_bit

A B C D R Шифра.
57.15 22.2 12 38 6.350 D-11798


traditional_table_edge_bit

A B C D R Шифра.
63.5 19 12 38 9.520 D-11807


classic_ogee_bit

A B C D R Шифра.
63.5 19.84 12 38 R1=6.350R2=9.500 D-11813


handrail_bit

A B C D R Шифра.
31.8 38.1 12 38 R1=9.520R2=12.70 D-13306



decorative_bead_bit
A B C D R Шифра.
31.8 31.8 12 38 R1=3.970, R2=7.940 • D-13312
34.9 41.28 12 38 R1=4.760, R2=12.70 • D-13328
34.9 38.1 12 38 R = 4.760 • D-13334


bullnose_mould_bit

A B C D Шифра.
39.68 25.4 12 38 D-13340


decorative_bit

A B C D R Шифра.
39.7 28.6 12 38 3.180 D-13792

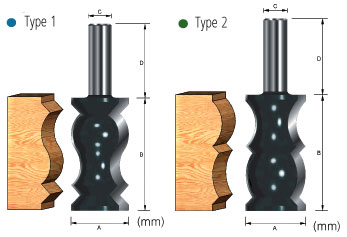

crown_moulding_bit

A B C D Шифра.
31.8 57.1 12 38 • D-13801
31.8 57.1 12 38 • D-13817


Raised_panel_bit

A B C D Шифра.
76.2 19 12 50 • D-13356
76.2 15.9 12 50 • D-13362
76.2 15.9 12 50 • D-13801
76.2 15.9 12 50 • D-13384


door_edge

A B C D Шифра.
31.8 25.4 8 32 D-13390


soild_surface_cutters_orgee

A B C D E R Шифра.
51.15 31.8 12 40 15 12.70 D-13873


board_joining_bit

D A1 A2 L1 L2 L3 Шифра.
12 38 26 61 4 20 793189-8
12.7 38 26 61 4 20 793191-1


economy-tongue-groove-set

A B C D E Шифра.
41 6.25 8 32 9.5 D-12011
41 6.35 12 38 9.5 D-12027
- 4 12 41 - 793190-3
- 4 12.7 41 - 793192-9


hinge_boring_bit

A C L Шифра.
20 8 76.2 D-13845
25 8 76.2 D-13867
22.22 10 76.2 D-13851
35 10 76.2 D-13758


straight_sash_router_bit

D A1 L1 L2 Шифра.
6 6 65 18 D-16988
6 8 65 30 793090-7
6.35 6.5 60 15 793119-9
6.35 8 65 30 793120-4


drill_point_sash_router_bit

D A1 L1 L2 Шифра.
6.35 6 65 18 793092-3
6.35 8 65 18 793112-3


Double_drill_bit

D A1 A2 L1 L2 Шифра.
6 12 6.5 60 12 793082-6
6 14 6.5 60 12 793083-4
6 16 6.5 60 12 793084-2
6 18 6.5 60 12 793085-0
6.35 12 6.5 60 12 793118-1
6.35 14 6.5 60 12 793117-3
6.35 16 6.5 60 12 793116-5
6.35 18 6.5 60 12 793115-7


ball_bearing

A B C Шифра.
9.52 4.76 3.18 D-13764
12.7 4.76 4.76 D-13770




  Алат | Прибор | Нови Производи | Превземи| Продажни Места | За нас | Корисни Совети LOTULS DOO Salvador Aljende 68, 1000 Skopje.
tel/fax: 389 2 3178 025, e_mail:info@lotuls.com.mk, lotuls@on.net.mk
